lii500 LCD 3.7V/1.2V AA/AAA 18650/26650/16340/14500/10440/18500 Battery Charger with screen+12V2A adapter lii-500 5V1A

FOB Reference Price:Get Latest Price
$10.00 - $15.00 / Piece | 10 Piece/Pieces LII500 charger (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
Model Number::
Standard Battery
NiMh, NiCd,Li-ion,AA,AAA Size Battery
1 battery charger, 1 car charger, 1adpater charger,1manual
Product name::
18650 battery charger, LCD Li ion batter
CE,Rohs, FCC
Payment terms::
T/T, western union, paypal
Power supply::
Socket Standard:
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month LII500 charger
Packaging & Delivery
Packaging Details
Exporton carton packing
Lead Time :
5-10 days
Product Description


Liitokala lii-500 is the world's greatest charger! Unique!!!
It can quickly detect 3.7 V and 1.2 V battery capacity.
And with 1-1.5 A USB 5 V output, add 3.7 V lithium battery, can you give any of the 5 V power supply products.
With a car charger and function.



1. This charger can only charge a cylindrical lithium-ion batteries and nickel-metal hydride batteries, non-rechargeable lithium iron phosphate battery;
2. Before use, please carefully refer to the instructions, pay attention to the recommendation of the rechargeable battery charging current, do not exceed the recommended charging current;
3. Do not use other power adapter;
4. Chargers discharge may be hot, be careful not to burn;
5. Stop use, unplug the power, removing the battery;
6. it can only be used in normal room.
7. This product test data for reference only, please refer professional equipment.
2. characteristics
1.4 kinds of charging current regulator (300mA / 500mA / 700mA / 1000mA);
2. Can different specifications (18650/26650 ...... / AA / AAA) in the battery charger;
3. The charger preclude the use of a separate screen LCD display, voltage (V) Current (mA) Time (h) Capacity (mAh) resistance (mR) parameters, E glance...;
Under 4. CHARGE mode, 4 channel work independently, you can select different charging current for charging and Hunchong lithium-ion batteries and nickel-metal hydride batteries.
Under 5. FAST TEST mode, 4 channels can quickly detect the battery capacity, regardless of the lithium-ion batteries and nickel-hydrogen batteries, are working independently. Rapid detection of battery capacity process (1 discharge, 2 full) by the two step
6. NOR TEST mode, the battery capacity is normally detected by the three step process (1 first charged, then discharged 2 and 3 refill), the detection process of the battery capacity;
7.CHARGE and FAST TEST / NOR TEST 3 modes can work simultaneously; independent set charge / fast capacity detection / normal capacity detection;
8. A variety of protection functions: overcharge and over discharge, short circuit, temperature, 0V voltage activation function, (- ΔV & 0ΔV), 1.65V-2.2V can not be charged, intelligent recognition bad battery and reverse-battery detection protection.

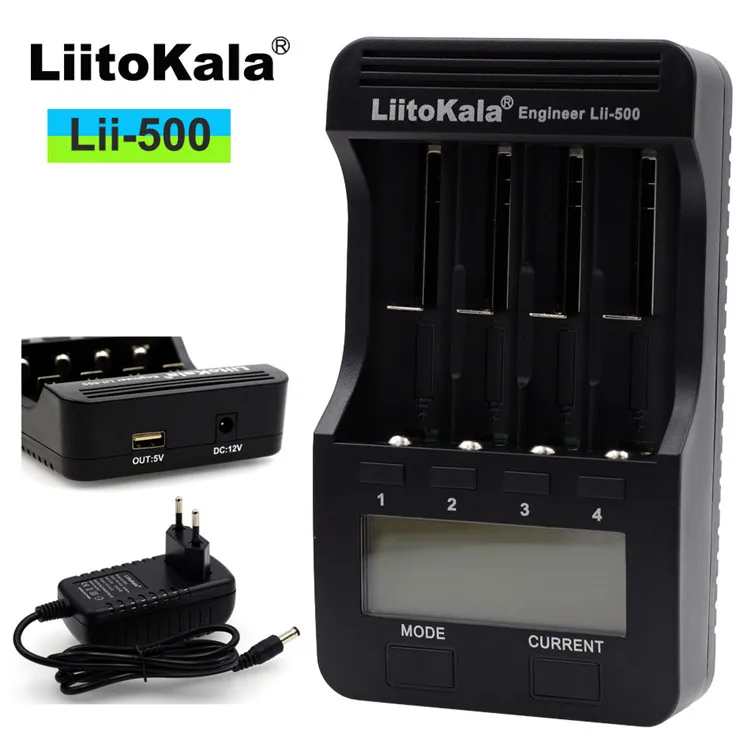

9. with standard 5V / 1000 mA USB output: from 1 to 4 lithium batteries lithium batteries USB output is completed, the product can not be nickel-metal hydride battery with USB output.
10. with a dedicated power adapter: DC Input voltage: 12V / 2A.
3.Description of the keys

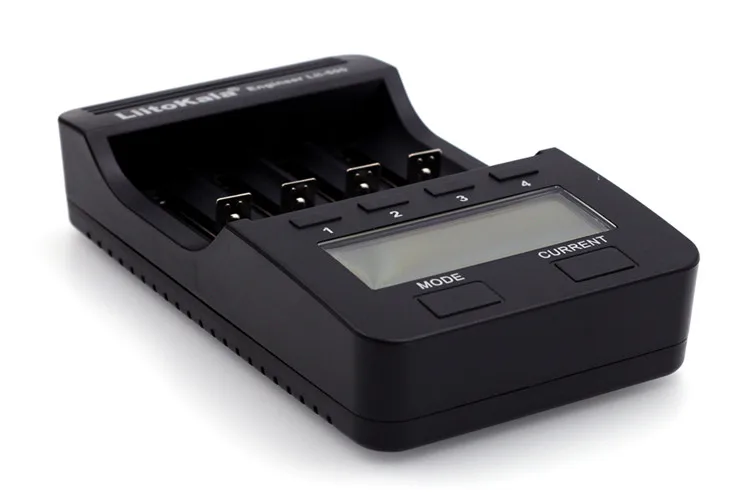

1. The charger has six buttons, mode selection key (MODE), the current selection key (CURREN), and view the data independently selected key (1234), the use of simple and convenient;
2. Hold down the MODE key in any case and held for 3 seconds to change the CHARGE (charge) mode or FAST TEST, NOR TEST (capacity test) mode, then tap again corresponding to the function keys can be changed within 8 seconds, to current, independent, Hunchong, capacity test, the selected function after 8 seconds into the working state, in working condition can tap the (1234) key to view the current (mA) / capacity (mAh) / voltage (V) / time ( h) / resistance (mR) data reference.
 4.Specific parameters
6.1 DC Input voltage: 12V / 2.0A
6.2 Li-ion battery charging current: 4.2V 300mA / 500mA / 700mA / 1000mA
6.3 NiMH battery charging current: 1.48V 300mA / 500mA / 700mA / 1000mA
6.4 Rechargeable Battery Specifications: 18650,26650,14500, AA, AAA, etc.
6.5 discharge current: 250mA, 500mA
6.6 USB Output: 5V --- 1000mA
6.7 Termination: intelligent voltage monitoring
6.8 Dimensions: 162mm (length) * 96mm (width) * 36mm (height).

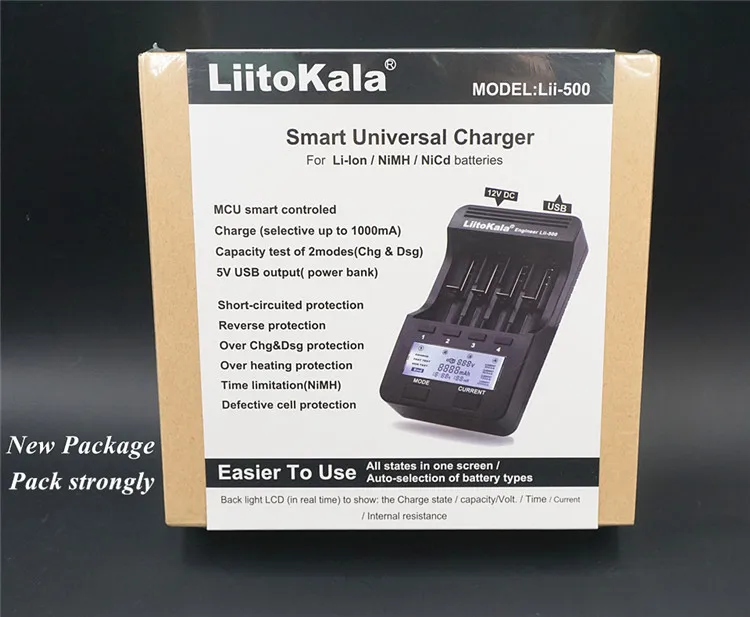

Packaging & Shipping

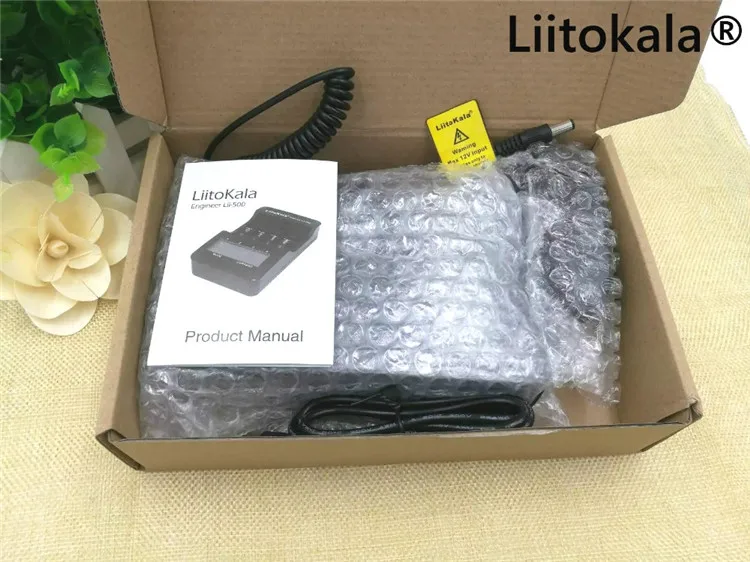

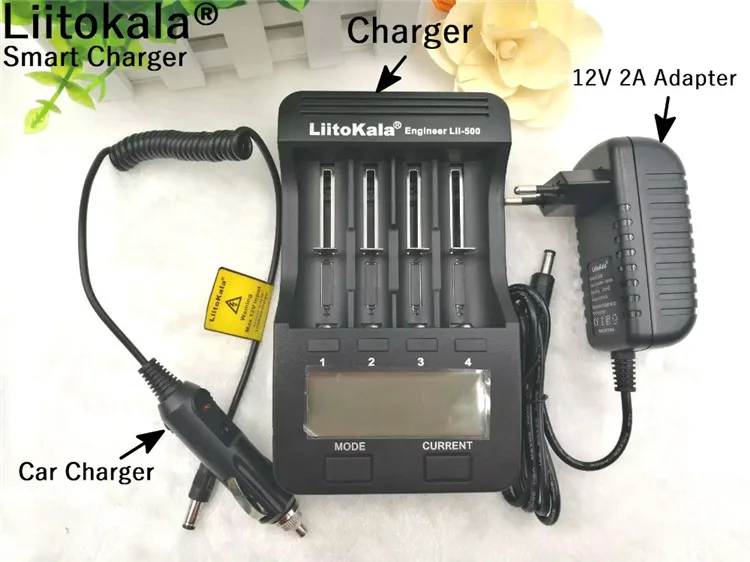

Packing list:

lii-500 charger    1PCS

2A   Adapter       1PCS

lii-500 Manual     1PCS

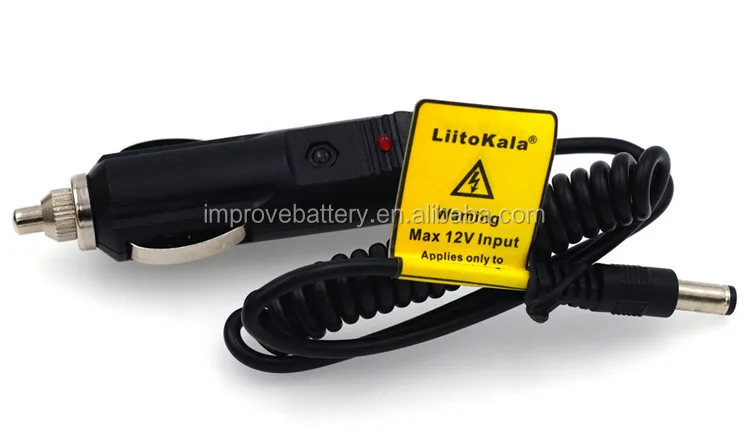

lii-500 Car cable  1PCS


By Express
By Air
By Sea

(door to door service)

Goods delivered to the Destination

Goods delivered to the Destination Port
About 3-7 days on Arrival
About 5-10 days on Arrival
About 15-40 days on arrival
Most quick and convenient(Door to door Service) but high expense
Quick and economical but not door to door service
Slowest and most economical but not door to door service
Our Services


(1) Your inquiry related to our products rice will be replied in 24 hours.


(2) Experienced staffs to answer all your enquires in fluent English.


(3) We makethe OEM and ODM service for more than 5 years. And the Paypal accepted,


(4) Protection of your sales area, ideas of design and all your private information.


(5)No matter big order or small order , we will provide all the best  quality , best service.


(6).  If our our products ave any problem that we caused, they will be sent free in the next order.
